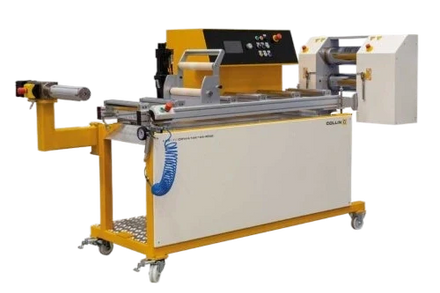

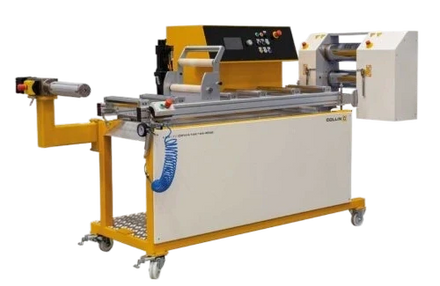

Flat Film Lines with 3 rolls – smoothing calender & chill roll
Extruders Australia takes pride in presenting our cutting-edge Laboratory Line, meticulously crafted to cater to the dynamic needs of the modern laboratory landscape. Our Laboratory Line of products stands as a testament to innovation, boasting a compact and sturdy design that seamlessly integrates with the demands of laboratory spaces. Built with the laboratory environment in mind, our products ensure not only reliability but also the ease of transportation, reflecting our commitment to enhancing your operational efficiency. With our Laboratory Line, we offer you a tailored solution that embodies both functionality and versatility, empowering your pursuit of scientific excellence.
Advantages
The roll unit is suitable for 2 working positions:
Vertical for the application as calender (horizontal die position)
Horizontal for the application as chill roll (vertical die position)
Prism rails and rails for more precision in the machine guidance
Rolls optimized for liquid tempering
Web speed steplessly controllable: 1 – 50 m/min
Diverse accessories such as for example camera inspection etc. are possible
Quick sample production
Easily traversable
Flexible and modular design
Operable by one person
High speeds are possible
Different material layers
High degree of automation
Upscaling to production lines
Application
Smoothing, embossing, laminating of films or sheets
Quality control
Material development
Control
The control panel is mounted at the switch cabinet and includes a 10“touch screen (CMI 10), function keys, a data wheel and an emergency stop button. The control has an interface to the optionally available software Visual FECON.
Customers
Compounding and refining companies
Processing companies
Packaging industry
Sports goods manufacturer
Universities and institutes
Companies in the medical sector
Product Specification
Parameters / Line | Flat film line with 3 rolls |
Web speed | 1-50 m/min, other speeds on request |
Roller width | 200, 400, 600 mm |
Working position rolls | horizontal, vertical |
