Tube Line - for hoses and tubes
Extruders Australia proudly presents the Teach Line, a transformative solution designed to elevate practical learning experiences in universities and educational institutions. Crafted with a deep appreciation for the value of hands-on education, our Teach Line serves as a conduit for knowledge transfer and skill acquisition. With an intuitive design and user-friendly interface, this line empowers educators and students alike to embark on a journey of exploration and mastery. From the classroom to the laboratory, the Teach Line fosters engagement, innovation, and a profound understanding of the subject matter. Embrace a new paradigm of experiential learning with Extruders Australia's Teach Line, where theory meets practice in perfect harmony.

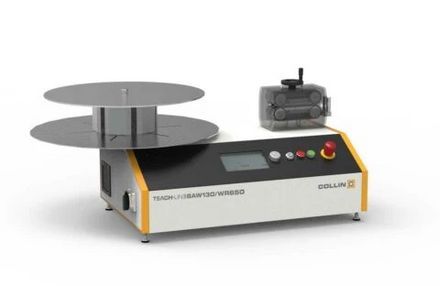

The COLLIN TEACH LINE Tube line consists of a tube die, the Vacuum Calibration Tank VKT 1000, calibration plates, a compressed air-drying device and the Belt Take-Off BAW 130 with Horizontal Winder WR 650.
Advantages
Compact table-top design
Easy handling
Regarding conception, capacity and installation height, all COLLIN TEACH LINE machines are adjusted on each other. Thus, retrofits or extensions can be realized immediately
Materials
Numerous polymers
Applications
Trainings, apprenticeship, further training, screenings, laboratory operation, test series, research & development
Control
Cooling water temperature indication
Feed valve for fresh water
Valves for water inlet to the vacuum tank and to the cooling tank
Throttling for the cooling water inlet, calibration and air control of the blow-off ring
Customers
Apprenticeship employers
Training facilities
Trade schools, vocational schools
Raw material manufacturers
Processing companies
Universities and institutes
Product Specification
Parameters / Tube Line | RW |
Max. tube / hose outer Ø | 6 mm |
Length calibration section | 400 mm |
Length cooling section I | 650 mm |
Length cooling section II | 150 mm |
Dimension L x W x H | 1500 x 480 x 460 mm |
Weight | approx. 65 kg |
